Foot candles are a unit of measurement used to express the intensity of light illuminating a given area, also known as illuminance. One foot-candle is the intensity of a 1-candlepower light source at a distance of one foot. This unit of measurement is most commonly used in places that follow the United States customary units of measurement. In other parts of the world, the SI-derived measurement lux is used. Lux is the same as foot-candles but defines the area being lit as a one-meter square, rather than a one-foot square. To calculate foot candles, one must take into account the power of the light source, also known as luminance, and the distance to the illuminated point.
| Characteristics | Values |
|---|---|
| Definition | Foot candles measure the intensity of light illuminating a given area, also known as illuminance. |
| Unit of Measurement | One foot-candle is the intensity of a 1-candlepower light source at a distance of one foot. |
| Formula | Light Intensity (ft-c) = Light Source Output (c) / (4πdistance (ft) ^2) |
| Tools | A sensitive light meter is the best tool for foot-candle readings. |
| Use Cases | Foot candles are used in commercial, industrial, and sports lighting. They are also used in horticulture, film and video production, and security applications. |
| Standards | Organizations like OSHA and the Illuminating Engineering Society (IES) provide guidelines for optimal foot candle levels in various settings. |
| Ceiling Height | Ceiling height and mounting height of fixtures influence the number and placement of light fixtures required to achieve desired foot candle levels. |
| Reflectance | Light-colored surfaces reflect more light, while dark surfaces absorb light, impacting the effectiveness of lighting design and the number of fixtures needed. |
| Relationship with Lumens | Lumens measure the total amount of light emitted by a source, while foot candles measure the intensity of that light at a specific distance. |
| Conversion | To convert lux to foot-candles, divide by 10.764. |
Explore related products
What You'll Learn
- Foot candles are a unit of measurement for light intensity
- The Illuminating Engineering Society provides guidelines for optimal foot candle levels
- Foot candles are used to ensure compliance with lighting standards
- Light meter tools can be used to calculate foot candles
- Foot candles are calculated by taking into account the power of the light source and the distance to the illuminated point
Foot candles are a unit of measurement for light intensity
Foot candles are used to ensure that areas requiring certain light levels are receiving them. This is important in electrical construction, as well as in various industries. For example, offices, manufacturing facilities, and workrooms need higher foot-candle measurements to make work easier on the eyes. Conversely, hallways and lobbies need lower foot-candle readings so that the light is bright enough to move around in but not too harsh.
Foot candles are also used in museums and galleries to preserve light-sensitive objects such as prints, photographs, and paintings, which would otherwise be damaged by exposure to bright light. Similarly, in horticulture, foot candles are used to ensure that plants receive the appropriate type and amount of light. In sports lighting, foot candles ensure optimal visibility for players and spectators.
The Illuminating Engineering Society (IES) provides guidelines on recommended lighting levels for various environments, and standards organizations recommend that photometric quantities be denoted with a subscript "v" (for "visual") to avoid confusion with radiometric or photon quantities.
Freezing Candles: Reuse Your Holder, Here's How
You may want to see also
Explore related products
The Illuminating Engineering Society provides guidelines for optimal foot candle levels
Foot candles are a crucial component of lighting design, ensuring that areas requiring certain light levels receive them. This is especially important in commercial and industrial facilities, where lighting impacts employee safety, efficiency, and productivity. The Illuminating Engineering Society (IES) provides guidelines for optimal foot-candle levels in various industrial settings, helping to ensure safe and functional environments.
The IES recommends specific foot-candle levels based on the function of the space. For instance, general warehouse areas typically require 10-30 foot candles, while detailed assembly work might demand 50-100 foot candles. Commercial offices with vision-intensive tasks should maintain higher average foot-candle levels of 30-40 FCs, whereas low-usage areas like parking structures can have lower levels of 1-5 FCs.
To calculate the required foot candles for a space, several steps are involved. Firstly, the desired light level for the area must be determined based on its function. Then, the area of the space in square feet needs to be measured. For rectangular spaces, this involves multiplying the length by the width, while irregular shapes require breaking down into smaller rectangles for individual calculation.
The next step is to calculate the total lumens needed by multiplying the required foot candles by the area in square feet. For example, a 1,000 square foot area requiring 50 foot candles would need 50,000 lumens. It's important to consider the light loss factor (LLF) to account for depreciation over time. Additionally, factors like ceiling height, mounting height of fixtures, and surface reflectance can influence the final illumination levels and should be taken into account when designing a lighting plan.
By following the guidelines provided by the Illuminating Engineering Society and considering the specific needs of a space, optimal foot-candle levels can be achieved, ensuring safe and functional lighting for various environments.
Punching Out Candles: The Art of a Powerful Blow
You may want to see also
Explore related products
Foot candles are used to ensure compliance with lighting standards
Foot candles are a unit of measurement that quantifies the intensity of light in a given area. They are most commonly used in places that follow the United States customary units of measurement, such as industrial and commercial workplaces, where lighting plays a critical role in employee safety and efficiency.
Compliance with lighting standards is essential for maintaining safe and well-lit workplaces. Organizations like the Occupational Safety and Health Administration (OSHA) have developed specific foot candle requirements to ensure that workers are protected from excessive lighting or glare, which can cause headaches and eyestrain over time.
Foot candles are especially important in settings such as packaging warehouses, where bright light is necessary for optimal visibility and the safe execution of tasks. In contrast, lobbies and hallways may require lower foot candle readings, as the lighting in these areas serves primarily to showcase decor and prevent tripping hazards.
To ensure compliance with lighting standards, businesses can utilize lighting plans or photometric studies. These studies employ specialized software to simulate spaces, add lighting fixtures, and determine mounting heights to calculate light levels and distribution. By comparing the average, maximum, and minimum foot candles, businesses can design lighting solutions that provide even light distribution and meet the specific needs of their facilities.
By understanding the relationship between foot candles and lumens, businesses can select the appropriate lighting fixtures to achieve the desired foot candle levels. For instance, a light fixture producing 1,000 lumens will yield 1 foot candle of illumination on a 1-foot square surface directly below it. Additionally, factors such as ceiling height, mounting height, and surface reflectance influence the number and placement of light fixtures required to attain the targeted foot candle measurements.
Ukraine Candles: Where to Order and Why
You may want to see also
Explore related products

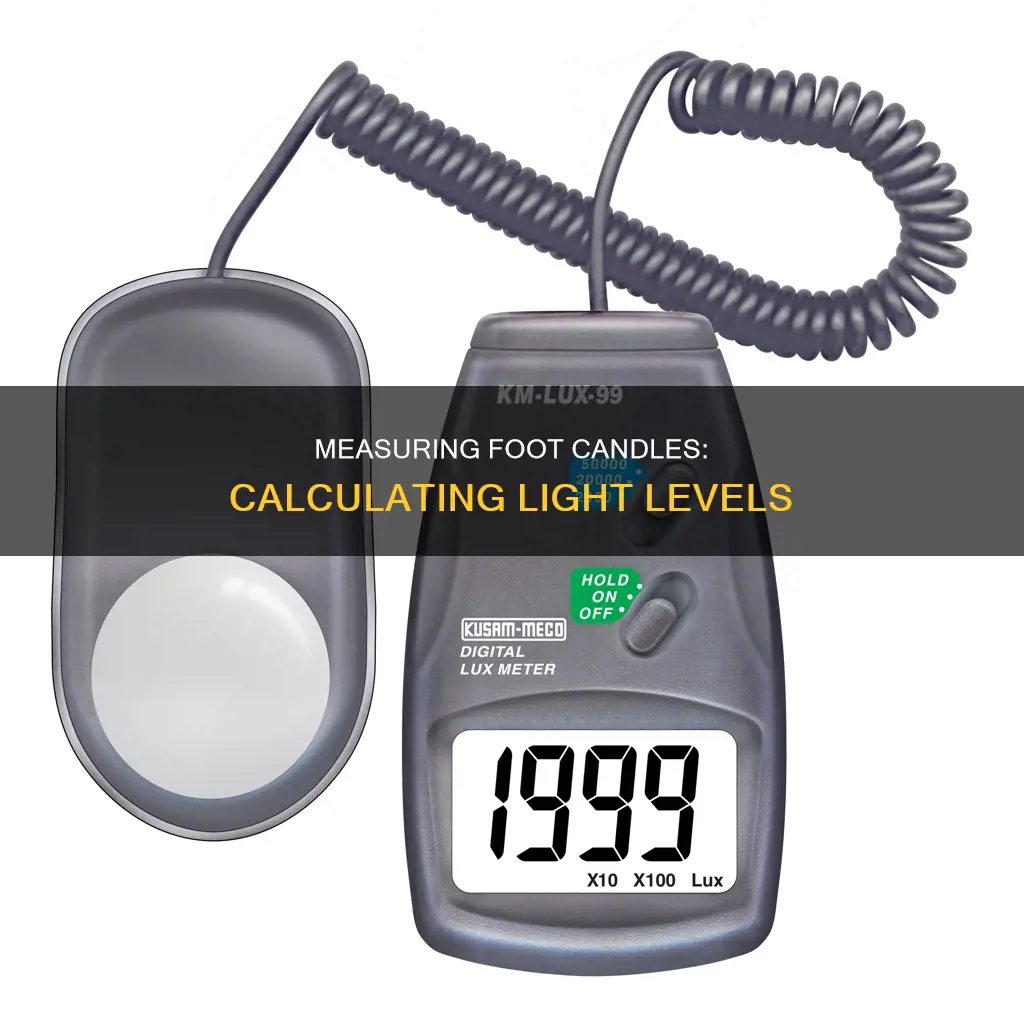

Light meter tools can be used to calculate foot candles
Light meter tools are an effective way to calculate foot candles at a specific spot. Foot candles are a measure of lumens per square foot, and a light meter will output its readings in foot candles or "lux" (the SI-derived unit that measures lumens per square metre).
Light meters are available from many manufacturers at various price points, from as little as $20 to $200 or more. The right meter is one that is accurate and fast. Most light meters will output readings in foot-candles, but if you get a light meter that renders its measurements in lux, you can do a quick conversion to get your reading in foot-candles. 1 lux is equal to 0.092903 foot-candles, so divide your lux reading by 10.764 to get your foot-candles reading.
Light meters are used by cinematographers, photographers, and filmmakers to determine camera settings like aperture and ISO, as well as how much light is needed. They are also used by horticulturists to ensure plants are getting the right amount of light, and by businesses with physical security requirements to ensure the right light levels in sensitive areas.
To calculate foot candles at a specific spot, point your light meter straight up to make a meaningful comparison with documented values. Take a reading at the specific spot at regular intervals throughout the day, traditionally measured every hour. You can then calculate the average light intensity over the whole day by adding up all the numbers and dividing by 24.
Creative Ways to Decorate Hurricane Candle Holders
You may want to see also
Explore related products
Foot candles are calculated by taking into account the power of the light source and the distance to the illuminated point
A foot-candle is a unit of measurement used to express the intensity of light illuminating a given area, also known as illuminance. It is defined as the amount of light emitted by a one-candlepower light source at a distance of one foot. One foot-candle is equivalent to one lumen per square foot, or approximately 10.76 lux.
To calculate foot-candles, one must take into account the power of the light source and the distance to the illuminated point. The power of the light source, or luminance, is measured in candlepower or lumens. If the given values for light source brightness or distance are not in these units, they must be converted to obtain a result in foot-candles. For example, one candlepower is equal to approximately 12.57 lumens, and one foot is equal to approximately 0.3048 meters.
The formula for calculating light intensity in foot-candles is given by: Light Intensity (ft-c) = Light Source Output (c) / (4*π*distance (ft)^2). This formula assumes that the light source radiates equal power in every direction, resulting in a uniform amount of light intensity at the same distance from the source. As the distance from the light source increases, the intensity of the light decreases over a larger surface area. Therefore, the mounting height of light fixtures and the reflectance of surfaces in the space also influence the distribution of light and the resulting foot-candle measurement.
Foot-candle measurements are important for ensuring that areas requiring certain light levels are receiving the appropriate illumination. This is especially crucial in commercial, industrial, and sports lighting to meet safety and functionality standards. For example, museums use foot-candle measurements to create the right ambiance and prevent damage to sensitive artifacts. Horticulture also relies on accurate foot-candle readings to provide optimal lighting conditions for plants. In sports lighting, foot-candles ensure optimal visibility for players and spectators.
Enhancing Candles with Dried Flowers: A Creative Guide
You may want to see also
Frequently asked questions
Foot candles are a unit of measurement used to express the intensity of light illuminating a given area, also known as illuminance. One foot-candle is the intensity of a 1-candlepower light source at a distance of one foot.
Foot candles are important because they ensure that areas that require certain light levels are receiving those light levels. This is important for electrical construction, employee safety, efficiency, and functionality.
To calculate foot candles, you need to take into account the power of the light source (luminance) and the distance to the illuminated point. The formula for light intensity is: Light Intensity (ft-c) = Light Source Output (c) / (4*π*distance (ft)^2).
You can use a sensitive light meter to measure foot candles. Light meters are available from many manufacturers at various price points.
General warehouse areas typically require 10-30 foot candles, while detailed assembly work might need 50-100 foot candles.
