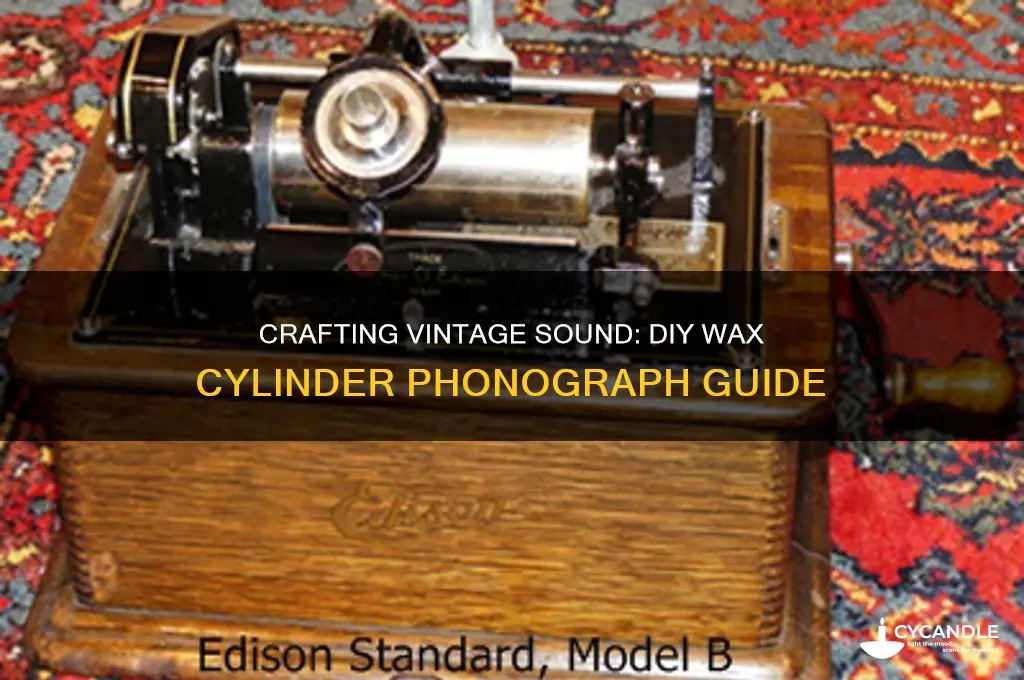

Creating a wax cylinder phonograph is a fascinating journey into the early days of sound recording and playback technology. Invented by Thomas Edison in the late 19th century, the phonograph was the first device to both record and reproduce sound, revolutionizing how people experienced music and speech. Building one involves understanding its core components: a rotating cylinder coated in a soft wax medium, a stylus for engraving sound waves, and a horn to amplify playback. The process requires precision in crafting or sourcing these parts, as well as patience to ensure the wax cylinder is properly prepared and the stylus accurately captures the sound. While modern technology has surpassed this early invention, constructing a wax cylinder phonograph offers a hands-on appreciation for the ingenuity that laid the foundation for today’s audio devices.
Explore related products
What You'll Learn
- Gather Materials: Wood, brass, wax cylinders, stylus, reproducer, motor, belt, tools, and finishing supplies
- Build the Base: Construct a sturdy wooden frame with compartments for the motor and cylinder
- Assemble the Turntable: Attach the motor, belt, and brass spindle to rotate the wax cylinder
- Install the Reproducer: Mount the reproducer arm with stylus to read the cylinder grooves
- Test and Adjust: Ensure proper alignment, speed, and sound quality; fine-tune for optimal performance
Gather Materials: Wood, brass, wax cylinders, stylus, reproducer, motor, belt, tools, and finishing supplies
The foundation of your wax cylinder phonograph lies in its structural integrity, and wood is the backbone of this endeavor. Opt for hardwoods like oak or mahogany for durability and aesthetic appeal. These materials not only provide the necessary strength to support the mechanical components but also lend a timeless, vintage charm to your creation. Consider the dimensions carefully; a base of approximately 12x18 inches and a height of 10-12 inches should suffice for a standard model. Remember, precision in measurement is key to ensuring all parts fit seamlessly.
Brass, with its warm luster and machinability, is the ideal choice for the phonograph's mechanical elements. You'll need brass tubing for the spindle, which should be about ¼ inch in diameter and 6 inches long, to hold the wax cylinders securely. Additionally, brass sheets can be crafted into the tone arm and other decorative components. When sourcing brass, ensure it is free from impurities to facilitate easy shaping and soldering. This material not only enhances the phonograph's functionality but also adds a touch of elegance, bridging the gap between art and engineering.
The heart of your phonograph is, undoubtedly, the wax cylinders. These can be either vintage finds or modern reproductions, depending on your budget and authenticity goals. Each cylinder typically holds 2-4 minutes of audio, so plan accordingly if you intend to record or play longer pieces. Handle them with care, as wax is susceptible to temperature changes and physical damage. Store them in a cool, dry place, and consider investing in protective sleeves to preserve their integrity. The quality of the wax directly impacts sound reproduction, so choose wisely.
A stylus and reproducer are critical for translating the grooves on the wax cylinder into audible sound. The stylus, often made of sapphire or steel, should be sharp yet durable to trace the delicate grooves without causing damage. Pair it with a reproducer that amplifies the vibrations effectively. Modern reproducers can be adapted from vintage designs, ensuring compatibility with your setup. Ensure the stylus is aligned perfectly with the reproducer to achieve the best sound quality. This delicate interplay between components is where the magic of sound reproduction truly comes alive.
No phonograph is complete without a reliable motor and belt system to drive the rotation of the wax cylinder. A small, low-voltage electric motor (12V or 24V) is ideal, providing consistent speed without generating excessive heat. The belt, typically made of rubber or synthetic materials, should be flexible yet sturdy to transmit power efficiently. Aim for a rotation speed of 70-80 RPM for accurate playback. Regularly check the belt for wear and tear, as slippage can distort the sound. This mechanical precision is crucial for maintaining the authenticity of the listening experience.
Finally, the right tools and finishing supplies will elevate your phonograph from a functional device to a masterpiece. Basic woodworking tools like a saw, chisel, and sandpaper are essential for shaping the wooden components. Soldering equipment and a metal file will help you craft and refine the brass parts. For finishing, consider a stain or varnish that complements the wood's natural grain, followed by a coat of wax for added protection. Pay attention to detail, as the final touches not only enhance durability but also showcase your craftsmanship. With patience and precision, your wax cylinder phonograph will be a testament to both history and ingenuity.
Crafting Pura Vida Bracelets: Wax-Free String Alternatives Guide
You may want to see also
Explore related products
Build the Base: Construct a sturdy wooden frame with compartments for the motor and cylinder
The foundation of any wax cylinder phonograph lies in its base, a structure that must marry stability with functionality. Begin by selecting a hardwood like oak or maple for its durability and aesthetic appeal. Measure and cut the wooden planks to form a rectangular frame, ensuring the dimensions accommodate both the motor and the cylinder. A typical base might measure 12 inches by 18 inches, but adjust based on your specific components. Use dovetail or mortise-and-tenon joints for added strength, securing them with wood glue and screws. This framework will not only support the phonograph’s weight but also dampen vibrations that could distort sound.
Next, design compartments tailored to your motor and cylinder. The motor compartment should be positioned at one end of the base, allowing easy access for wiring and maintenance. Create a recessed area slightly larger than the motor’s dimensions, ensuring it sits flush with the surface. For the cylinder, construct a cradle-like compartment at the opposite end, lined with felt or foam to minimize friction and protect the delicate wax. Incorporate adjustable brackets to accommodate cylinders of varying lengths, typically ranging from 2 to 5 inches. Precision here is key—poorly fitted compartments can lead to misalignment and compromised sound quality.
While constructing the base, consider the phonograph’s ergonomics and portability. Add handles to the sides if you plan to move it frequently, and ensure the bottom is smooth to prevent scratching surfaces. If aesthetics are a priority, stain or varnish the wood to enhance its natural grain. However, avoid glossy finishes that might reflect light and distract from the phonograph’s operation. For added stability, attach rubber feet to the base’s underside, which will also insulate against vibrations from the motor.
A common mistake in this phase is underestimating the weight of the components. A fully assembled wax cylinder phonograph can weigh upwards of 20 pounds, so reinforce the base with additional bracing if necessary. Test the frame’s stability by placing weights equivalent to the final assembly in each compartment. If it wobbles or strains, revisit your joinery or add support beams. Remember, a sturdy base is not just about holding the parts together—it’s about ensuring they work harmoniously to reproduce sound faithfully.
Finally, integrate cable management into your design. Drill small holes near the motor compartment to route power and audio cables discreetly, preventing tangles and tripping hazards. If you’re incorporating a hand crank, ensure its mechanism aligns seamlessly with the motor’s drive shaft. Once the base is complete, step back and assess its balance—both literal and visual. A well-built base not only supports the phonograph but also elevates it, transforming a collection of parts into a cohesive, functional artifact of sound reproduction.
Eyebrow Waxing Redness: Causes, Prevention, and Quick Recovery Tips
You may want to see also
Explore related products
Assemble the Turntable: Attach the motor, belt, and brass spindle to rotate the wax cylinder
The turntable is the heart of your wax cylinder phonograph, responsible for spinning the cylinder at a precise speed to reproduce sound accurately. Begin by selecting a suitable motor—a small, low-RPM DC motor (around 60-80 RPM) works best to mimic the original phonograph’s speed. Attach the motor securely to a sturdy base using brackets or a mounting plate, ensuring it remains stable during operation. Next, connect a rubber or leather belt to the motor’s drive shaft. This belt will transfer power to the brass spindle, which holds the wax cylinder. The belt should be taut but not overly tight to avoid slippage or strain on the motor.
The brass spindle is a critical component, as it must rotate smoothly and evenly to prevent distortion in playback. Choose a spindle with a diameter slightly smaller than the cylinder’s center hole (typically ¼ inch) and ensure it’s polished to reduce friction. Secure the spindle to a bearing or bushing mounted on the base, allowing it to spin freely. Align the spindle precisely with the motor’s axis to avoid wobble, which can cause skipping or uneven playback. Test the assembly by hand-spinning the spindle to ensure it rotates without resistance.
A common mistake in this step is neglecting to calibrate the motor’s speed. Use a multimeter or tachometer to verify the motor runs at 60-80 RPM, as deviations can alter pitch. If the motor runs too fast or slow, adjust the voltage using a variable resistor or power supply. For added precision, consider installing a speed control circuit to maintain consistency. This step is crucial for achieving authentic sound reproduction, as Edison’s original phonographs relied on consistent rotation for clarity.
Finally, integrate the turntable into your phonograph’s frame, ensuring it’s level and securely fastened. Position the sound box or reproducer arm so the stylus aligns with the cylinder’s grooves when mounted on the spindle. Test the assembly with a blank cylinder to check for smooth rotation and adjust as needed. With the turntable properly assembled, you’ve laid the foundation for a functional wax cylinder phonograph capable of bringing vintage recordings to life.
Create Custom Stencils Easily: Wax Paper Stencil Making Guide
You may want to see also
Explore related products
Install the Reproducer: Mount the reproducer arm with stylus to read the cylinder grooves
The reproducer is the heart of your wax cylinder phonograph, translating the physical grooves on the cylinder into audible sound. Its arm, tipped with a delicate stylus, must be precisely aligned to track the cylinder’s contours without damaging the wax. Begin by securing the reproducer arm to the phonograph’s chassis using the mounting bracket provided in your kit or designed in your plans. Ensure the arm pivots freely but remains stable, as any wobble will distort playback. The stylus, typically made of sapphire or steel, should be positioned at a slight downward angle (approximately 15 degrees) to maintain consistent contact with the cylinder’s grooves.
Consider the material of your stylus carefully. Steel styluses are durable but can wear down wax cylinders faster, while sapphire styluses offer smoother playback but are more fragile. For beginners, a steel stylus is recommended for its balance of longevity and performance. When mounting, use a magnifying glass to verify the stylus aligns with the cylinder’s starting groove. Improper alignment will result in skipped sections or uneven sound reproduction. Tighten all screws gently to avoid warping the arm or bracket, as over-tightening can introduce unwanted vibrations.
A common mistake is neglecting to adjust the tracking force, which is the downward pressure the stylus exerts on the cylinder. Too much force can carve into the wax, while too little causes the stylus to skip. Aim for a tracking force of 2 to 3 grams, which can be measured using a small digital scale. If your phonograph lacks a built-in force adjustment, add a counterweight to the reproducer arm or use a spring mechanism to achieve the desired pressure. Test the setup by manually spinning the cylinder and observing whether the stylus remains in the groove without digging in or bouncing out.
For a more immersive experience, experiment with different stylus shapes. Conical styluses are standard and work well for most cylinders, but elliptical styluses can enhance high-frequency response on well-preserved recordings. If you’re working with antique cylinders, inspect them for wear before playback; deep grooves or cracks may require a more forgiving stylus profile. Remember, the goal is to preserve both the phonograph and the cylinder, so prioritize gentle handling over perfect sound quality.
Finally, test your reproducer setup with a known cylinder recording. Start with a slow, manual rotation to ensure the stylus tracks smoothly. Gradually increase playback speed to the standard 120 RPM, listening for clarity and consistency. If the sound is muffled or distorted, recheck the stylus alignment and tracking force. With patience and precision, your reproducer will breathe life into wax cylinders, bridging the gap between history and modern ears.
DIY Spray-On Car Wax: Easy Homemade Recipe for a Shiny Finish
You may want to see also
Explore related products
Test and Adjust: Ensure proper alignment, speed, and sound quality; fine-tune for optimal performance
The phonograph's performance hinges on precision. Even a millimeter of misalignment between the stylus and the wax cylinder can distort sound, rendering your recordings unintelligible. Begin by securing the cylinder firmly on the mandrel, ensuring it sits perpendicular to the surface. Adjust the stylus arm so the needle rests gently in the groove, tracking without dragging or skipping. Use a magnifying glass to verify alignment, looking for smooth, consistent contact. This initial setup is critical; a misaligned stylus will not only degrade sound quality but also risk damaging the delicate wax.
Speed control is equally vital. The standard playback speed for wax cylinders is approximately 120 RPM (revolutions per minute), but variations in machinery or wear can alter this. Invest in a tachometer to measure the turntable’s speed accurately. If your phonograph lacks a speed adjustment mechanism, modify the drive belt tension or replace the motor pulley to achieve the correct RPM. Listen for pitch distortions—if the playback sounds too high or low, adjust the speed incrementally until the audio aligns with the original recording’s intended tone.
Sound quality is the ultimate test of your phonograph’s performance. Start by isolating external noise sources; even a humming motor or loose cabinet can interfere with playback. Use felt pads or rubber dampeners to minimize vibrations. Next, experiment with different stylus materials—steel needles offer clarity but wear the cylinder faster, while fiber needles are gentler but may produce muffled sound. For optimal results, clean the stylus before each use with a soft brush and isopropyl alcohol to remove debris. Amplification can enhance faint recordings; consider adding a horn or modern preamp, but beware of overloading the signal.
Fine-tuning is an iterative process. After initial adjustments, play a variety of recordings to test consistency. Pay attention to dynamic range—are soft passages inaudible, or are loud sections distorted? Adjust the stylus pressure or turntable balance as needed. For advanced users, experiment with acoustic modifications: reposition the horn for better resonance, or add a soundbox to improve bass response. Document your changes to track what works best for your specific setup. Over time, this meticulous calibration will transform your phonograph from a novelty into a reliable audio device.
Finally, patience is key. Wax cylinders and their playback mechanisms are finicky, and achieving optimal performance requires persistence. Regular maintenance, such as cleaning the cylinder surface with a soft cloth and storing it in a humidity-controlled environment, will preserve sound quality. Treat each adjustment as a learning opportunity, and don’t be discouraged by setbacks. With careful testing and refinement, your wax cylinder phonograph can deliver a rich, authentic listening experience that bridges the gap between past and present.
Easy DIY Wax Melt Crumbles: Crafting Aromatic Home Fragrance
You may want to see also
Frequently asked questions
You will need a wax cylinder, a phonograph horn, a mandrel, a stylus, a motor or hand crank, a mounting base, and basic tools like a drill, screwdriver, and soldering iron.
Heat the wax cylinder slightly to soften it, then mount it on the mandrel. Ensure it is smooth and free of imperfections before recording or playing back audio.
While traditional materials are ideal for authenticity, modern substitutes like 3D-printed parts or electronic motors can be used, though they may alter the sound quality or aesthetic.
Align the stylus so it rests lightly on the cylinder's grooves, ensuring it follows the path without skipping or digging into the wax. Adjust the tracking force as needed for clear playback.
