Battery-powered devices are convenient, but it can be a hassle to replace the batteries constantly. One way to avoid this is to wire your device directly to an AC power source. In this case, we'll be looking at how to wire battery-powered candles to an AC power source. This process involves some electrical know-how and safety precautions, but it can be a great way to save money and time on batteries.
Characteristics and Values Table for Wiring Battery-Powered Candles to AC
| Characteristics | Values |
|---|---|
| Batteries per candle | 3 |
| Battery type | AAA or AA |
| Battery life | 8-12 hours (light fades after 6 hours) |
| AC/DC adapter connection | Male adapter plugs into the first candle |
| Voltage requirement | 4.5V (5V may be used but could reduce bulb life) |
| Current requirement | At least 1500mA (1.5A) |
| Power supply | DC 5V cord with a switch |
| Wire type | Speaker wire with large enough gauge for 2A |
| Diode | Wired internally to each candle to protect from wire polarity issues |
| Fuse | A fast-acting 1A fuse is recommended |
| Regulator circuit | LM317 variable voltage regulator or similar |
| Output wires | Connect to end terminals of the battery pack or use dummy batteries |
Explore related products
What You'll Learn
Soldering wires to leads
To begin soldering wires to leads, it is important to first prepare your workspace and materials. Put on a pair of safety glasses to protect your eyes from any harm. Ensure you are working in a well-ventilated area to prevent solder fumes from building up and causing harm. You should also wash your hands after handling leaded solder, as lead can be harmful if consumed.
Next, you should prepare your wires. Strip 1 inch (2.5 cm) of insulation off the end of each wire. Secure the jaws of a wire stripper 1 inch (2.5 cm) from the end of the wire and squeeze the handles together. Pull the jaws towards the end of the wire to remove the insulation.
Now, you can begin to solder. Melt solder on the tip of your soldering iron to prevent oxidation. Hold the end of the solder to the end of the iron so that a thin layer of it melts onto the iron. Continue until the iron has a shiny appearance. This process is known as "tinning" the iron.
When soldering wires to leads, it is recommended to wrap the wire 180 degrees around the lead. You can then heat the ends of the leads and add a small amount of solder. Reheat both ends and the solder, holding them together. Alternatively, you can solder the wire on a hole next to the joint, using an alligator clip to keep it in place, and then bridge the connection.
To improve the strength and safety of the joint, you can solder two wires parallel to each other. This provides a larger contact area and a safer connection as the wires are not sticking out from the joint. You can also use heat shrink tubing to improve safety. Slide the heat shrink onto the wire before soldering the joint, and use a match, lighter, or heat gun to shrink the tubing.
Finally, cover and waterproof the exposed wires to seal them and finish the process.
Candles to Warm Your Room: How Many Do You Need?
You may want to see also
Explore related products
Using a regulator circuit
To convert battery-powered candles to run on AC, you can use a regulator circuit to step down the voltage from the power supply to the required level. This is a common method used to power various electronics and devices, such as a swing, that don't need to be portable all the time. Here are the steps and considerations for using a regulator circuit:
Choosing the Right Components
Select a variable voltage regulator like an LM317, which is commonly used for such applications. You will also need two resistors to set the output voltage according to the formula: Vout = 1.25 * (1 + R2/R1). Capacitors are optional and only needed if your circuit is sensitive to small power fluctuations. If you plan to power multiple devices with different voltage requirements, a variable resistor R2 is useful. Otherwise, you can use a fixed-value resistor.
Circuit Design and Connection
The regulator circuit is connected between the power supply and the plug. The positive output of the regulator is connected to one screw, and the negative output is connected to another screw. Ensure you clearly mark the positive and negative ends to avoid confusion. You can choose to retain the dummy batteries and connect the regulator circuit to them or skip the batteries and connect the regulator directly to the end terminals of the battery pack.
Power Supply Considerations
The power supply voltage requirements depend on the number of candles and their bulb ratings. For a series of candles, ensure you provide the correct voltage and observe the polarity (positive and negative terminals) when connecting the power supply. A 4.5V DC power supply is generally suitable, while a 5V supply may work but could shorten bulb life. The voltage rating must be 4.5V, although you may be able to use 5V in some cases.
Fuse and Diode Considerations
To protect your setup, consider using a fuse close to the power supply. While a larger fuse provides more protection, a smaller fuse is safer if you're unsure about the current draw of your candles. Additionally, to prevent wiring the circuit backwards, each candle should have a diode wired internally.
Safety and Precautions
Always exercise caution when working with electrical circuits and power supplies. Ensure you have the correct knowledge and equipment to perform the necessary soldering, wiring, and connections. Refer to detailed guides and seek advice from experts or experienced makers when needed.
Nudity in 16 Candles: What's Revealed?
You may want to see also
Explore related products
DC power supply
To convert battery-powered candles to run on AC power, you will need a DC power supply. The specific requirements for the power supply will depend on the number and type of candles you are using.
For example, if you have 10 candles that each take 3 AAA batteries, you will need a DC power supply that outputs 4.5V and at least 1500mA (1.5A). A 5V supply may also work, but it could potentially shorten the life of the bulbs. It is important to match the voltage and current ratings of the power supply to the requirements of your candles to ensure they function properly and safely.
When setting up the wiring, you will need to observe the correct polarity by connecting the positive and negative terminals of the power supply to the corresponding terminals on the candles. You can use a barrel plug with male and female connectors to facilitate the connection between the power supply and the candles, allowing for easy arrangement and disassembly.
Additionally, consider using a variable voltage regulator, such as an LM317, to adjust the output voltage of the power supply to match the requirements of your candles. This regulator uses two resistors to set the output, and you can simplify the circuit by eliminating capacitors unless your load circuit is sensitive to small power fluctuations.
By following these guidelines and ensuring safe handling of electrical components, you can successfully convert your battery-powered candles to run on AC power using a suitable DC power supply.
Understanding Crypto Candlesticks: A Beginner's Guide
You may want to see also
Explore related products

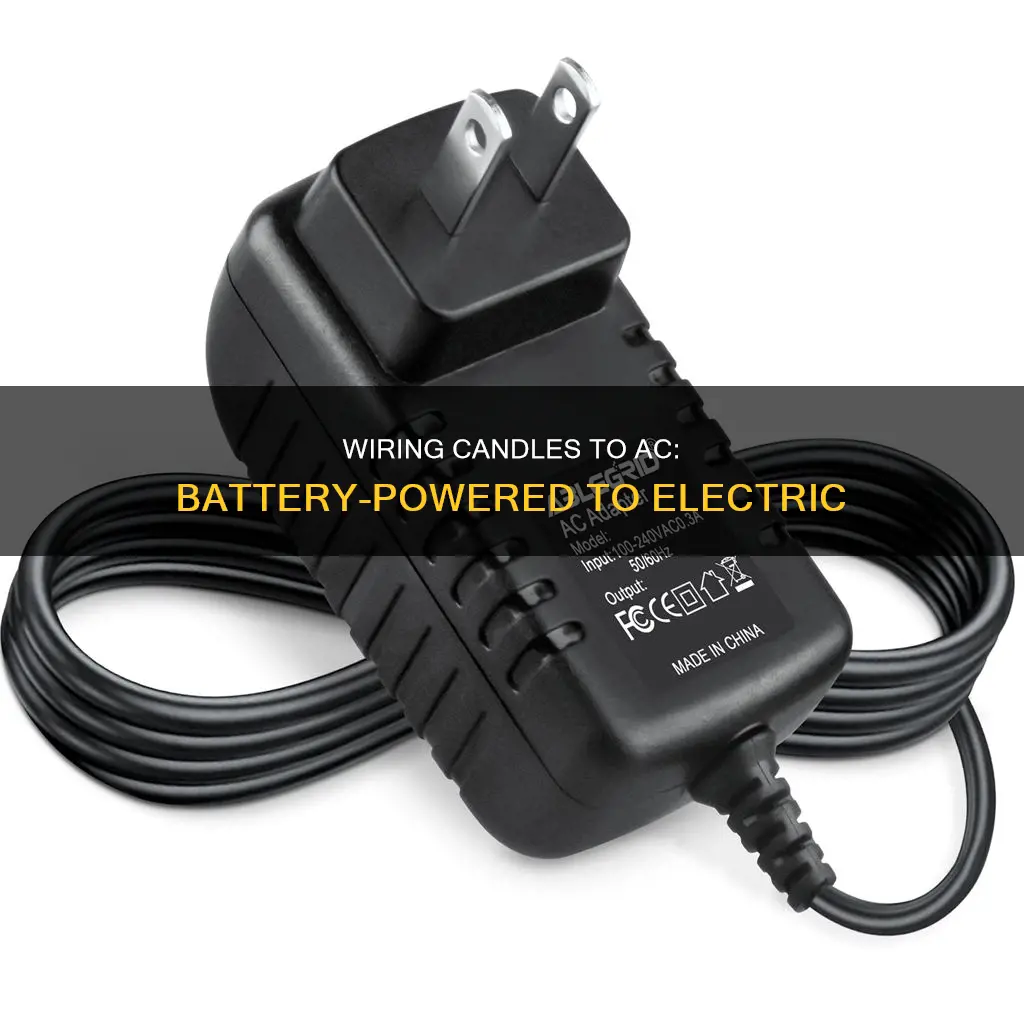

AC/DC adapter
To wire battery-powered candles to an AC power source, you will need to use an AC/DC adapter. This will allow you to convert the AC power from your wall outlet to DC power, which is required for the candles. Here is a step-by-step guide on how to do this:
Choose the Right AC/DC Adapter:
First, you need to select an AC/DC adapter with the appropriate voltage and current ratings. For a series of candles, you will need a DC output of 4.5V. A 5V supply may also work, but it could potentially shorten the bulb life. The current rating should be at least 1500mA (1.5A) for a series of 10 candles, as mentioned in one source. However, you may need to adjust this value based on the specific requirements of your candles.
Observe Polarity:
When connecting the AC/DC adapter, ensure you observe the correct polarity. The positive and negative terminals of the adapter must match the corresponding terminals on the candles. Failure to do so could result in damage to the candles or the power supply.
Consider the Power Supply Size:
The size of the power supply depends on the wattage of each bulb in your candles. Refer to the manufacturer's specifications or the fine print on the lamps to determine the wattage and select an appropriately sized power supply.
Use a Variable Voltage Regulator:
As mentioned in one source, it is rare to find a power supply that perfectly matches your electrical appliance. You can use a variable voltage regulator, such as an LM317, to modify the output voltage of your AC/DC adapter to match the requirements of your candles. This will ensure a stable and appropriate voltage supply.
Connect the Adapter:
Now, you can connect the AC/DC adapter to the candles. One suggested method is to use a barrel plug with male and female connectors. The AC/DC adapter would have a male connector to plug into the first candle in the series, and each candle would have male and female connectors to allow for arrangement in any order and easy disassembly.
Solder the Connections:
To ensure a permanent and secure connection, you may need to solder the wires from the AC/DC adapter to the leads in each candle. This requires basic soldering skills and equipment.
By following these steps and taking the necessary precautions, you can successfully wire your battery-powered candles to an AC power source using an AC/DC adapter.
Recycling Candle Holders: What's the Verdict?
You may want to see also
Explore related products
Using a diode
To wire battery-powered candles to AC, you can use a diode to protect against polarity issues and voltage drops. Here's a step-by-step guide:
Step 1: Understanding Polarity
Before you begin, it's crucial to understand the concept of polarity. Each candle should have a diode wired internally to prevent incorrect wiring. The diode ensures that electricity flows in only one direction, protecting your setup from potential damage caused by reversed connections.
Step 2: Choosing the Right Diode
When selecting a diode, opt for a common type like the 1N914, readily available at most electronics stores. Avoid rectifier-type diodes with higher voltage drops, such as the 1N4001, as they can lead to outputting either too much or too little voltage.
Step 3: Wiring the Diode
Each candle requires a diode wired internally. Ensure that the diode is connected to the positive terminal of the candle. This will prevent issues caused by accidentally swapping the wires during the connection process.
Step 4: Voltage Considerations
Keep in mind that the voltage drop across the diode will make using 5V AC-DC adapters more suitable. If you're having trouble finding an AC-DC adapter, a USB charger that can handle 2A will also work. Adjustments to the voltage can be made to achieve the desired brightness for your candles.
Step 5: Connecting the Power Adapter
To connect the power adapter to your setup, you can use a DC power jack with a built-in switch. This allows you to switch between battery power and the power supply. Cut the wire from the positive terminal of the battery pack and connect it to the power jack. Then, connect the circuit to the power jack and the negative wire from the battery pack.
Step 6: Safety and Maintenance
Always use caution when working with electrical components. Consider using a soldering iron to create more permanent and reliable connections. Additionally, protect your setup from the elements, especially if it's outdoors, by using heat shrink and solder to keep connections water-tight.
By following these steps and paying attention to safety, you can successfully wire your battery-powered candles to AC using a diode, ensuring a consistent and controlled power supply for your candles.
Jo Malone Candles: Natural Ingredients, Synthetic Fragrance
You may want to see also
Frequently asked questions
You will need to use an AC/DC adapter. The voltage rating MUST be 4.5V, although 5V may be used in some cases. You will need to observe the correct polarity when hooking up the power supply (positive and negative terminals).
You can use speaker wire as long as the gauge is large enough for 2A. Each candle should have a diode wired internally to protect from hooking the wire up backward. You can also use barrel plugs with male and female ends for in/out power.
The size of the power supply depends on the wattage of each bulb. You can find this information on the fine print on the lamps or the manufacturer's specifications. If the fuse is close to a candle, there is a risk of wire shorting between the fuse and power supply, which can cause damage.
