A candle filter, also known as a ceramic filter or candle-type filter, is a highly efficient filtration device widely used in various industries for liquid-solid separation. It consists of a cylindrical, porous ceramic element, resembling a candle, which is housed within a pressure vessel. The filter operates by passing the liquid through the porous structure, trapping suspended solids and impurities while allowing the clarified liquid to pass through. This type of filter is particularly effective in applications requiring fine filtration, such as in the chemical, pharmaceutical, and food and beverage industries, due to its ability to handle high temperatures, corrosive materials, and fine particle removal. Its durable construction and ease of maintenance make it a preferred choice for processes demanding reliability and consistent performance.
| Characteristics | Values |
|---|---|
| Definition | A candle filter is a type of depth filter used in industrial filtration processes, shaped like a candle or cylinder. |
| Material | Typically made from porous materials like ceramic, metal, or sintered polymers. |
| Filtration Mechanism | Operates via depth filtration, trapping particles within the porous structure. |
| Applications | Used in industries such as pharmaceuticals, chemicals, food & beverage, and wastewater treatment. |
| Particle Retention | Can retain particles as small as 0.1 microns, depending on the material and design. |
| Flow Direction | Usually operates with outside-to-inside flow (radial flow). |
| Cleaning | Can be cleaned and reused multiple times, depending on the material and contamination. |
| Pressure Resistance | High resistance to pressure differentials, suitable for high-pressure applications. |
| Temperature Resistance | Can withstand high temperatures, depending on the material (e.g., ceramic filters up to 1000°C). |
| Chemical Compatibility | Resistant to a wide range of chemicals, depending on the material used. |
| Lifespan | Long lifespan due to durability and reusability. |
| Maintenance | Requires periodic cleaning or backwashing to maintain efficiency. |
| Cost | Higher initial cost compared to some filters but cost-effective long-term due to reusability. |
| Size and Shape | Cylindrical shape with varying lengths and diameters based on application. |
| Efficiency | High filtration efficiency, especially for fine particles and liquids. |
Explore related products
What You'll Learn
- Definition: A candle filter is a high-efficiency filtration device using porous ceramic or metal elements
- Working Principle: Operates via pressure or vacuum, forcing liquid through candle-shaped filter elements
- Applications: Used in industries like chemicals, pharmaceuticals, food, and wastewater treatment for liquid-solid separation
- Types: Includes ceramic, metallic, and polymer candle filters, each suited for specific filtration needs
- Advantages: Offers high throughput, long service life, easy cleaning, and minimal maintenance requirements
Definition: A candle filter is a high-efficiency filtration device using porous ceramic or metal elements

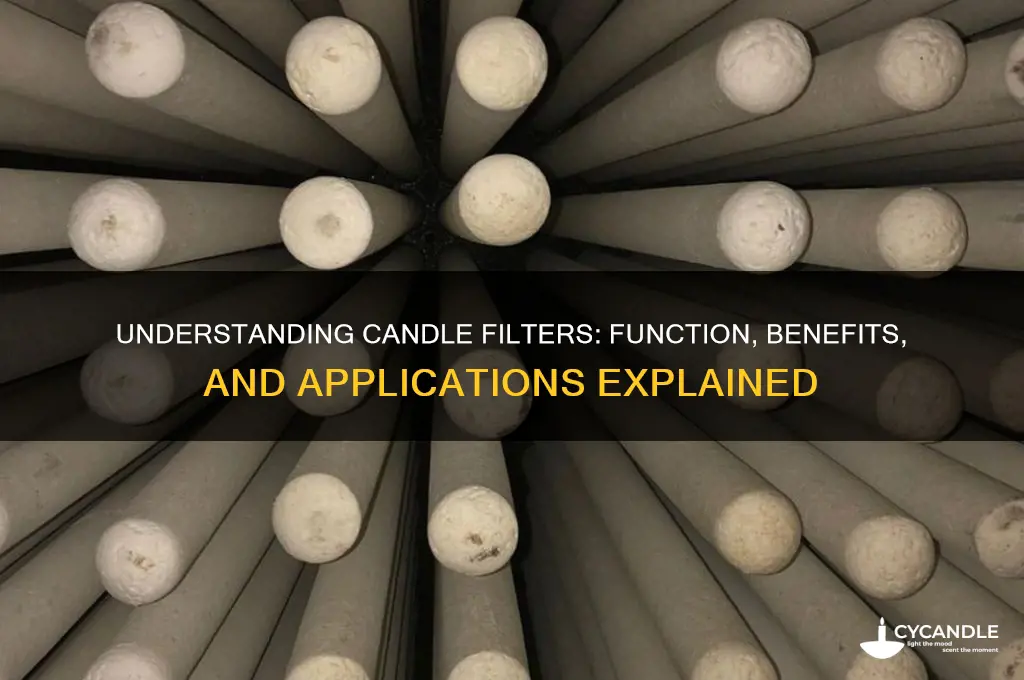

A candle filter is a specialized filtration device designed for high-efficiency separation of solids from liquids or gases. Its name derives from the shape of its primary components, which resemble candles. The core of a candle filter consists of porous ceramic or metal elements, which act as the filtration medium. These elements are engineered with a network of tiny pores that allow the passage of fluids while trapping suspended particles, ensuring effective separation. This design makes candle filters particularly suited for applications requiring fine filtration and high throughput.
The porous ceramic or metal elements in a candle filter are typically cylindrical in shape and are vertically suspended within a vessel. The material choice—ceramic or metal—depends on the specific application requirements, such as temperature, chemical compatibility, and desired filtration efficiency. Ceramic elements are often preferred for their corrosion resistance and ability to handle high temperatures, while metal elements offer durability and mechanical strength. The pores in these elements are precisely controlled to achieve the desired particle retention, ranging from micron to sub-micron levels.
Candle filters operate under pressure or vacuum conditions, forcing the fluid through the porous elements while retaining solids on the outer or inner surface, depending on the configuration. This process allows for continuous filtration, as the filter can be periodically cleaned or backwashed to remove accumulated solids and restore efficiency. The high surface area of the candle-shaped elements maximizes filtration capacity, making these devices ideal for large-scale industrial processes.
One of the key advantages of candle filters is their ability to handle high volumes of fluid with minimal pressure drop, ensuring energy efficiency. Their robust construction and resistance to harsh operating conditions also contribute to their longevity and reliability. Industries such as chemical processing, pharmaceuticals, food and beverage, and wastewater treatment frequently employ candle filters for their superior performance in removing fine particles, impurities, and contaminants.
In summary, a candle filter is a high-efficiency filtration device that utilizes porous ceramic or metal elements to separate solids from fluids. Its unique design, combined with the durability and precision of its filtration medium, makes it a versatile and effective solution for demanding industrial applications. Whether used for liquid clarification, gas purification, or solid recovery, candle filters deliver consistent and reliable performance in critical filtration processes.
Small Candles: How Long Do They Really Burn?
You may want to see also
Explore related products
$3.99
Working Principle: Operates via pressure or vacuum, forcing liquid through candle-shaped filter elements
A candle filter, also known as a candle filter element or candle filter system, operates on a straightforward yet effective principle: it utilizes pressure or vacuum to force a liquid through specially designed, candle-shaped filter elements. These elements are typically cylindrical in shape, resembling a candle, hence the name. The primary function of this filtration method is to separate solids from liquids efficiently, making it a valuable tool in various industries such as chemical processing, pharmaceuticals, food and beverage, and wastewater treatment. The working principle is centered around creating a pressure differential across the filter medium, which drives the liquid through while retaining the solid particles.
The process begins with the introduction of the liquid-solid mixture into the filter housing, which contains multiple candle-shaped filter elements. These elements are often made from materials like stainless steel, polymers, or ceramics, chosen for their durability and compatibility with the specific application. When pressure is applied, either externally or through a vacuum system, the liquid is compelled to flow through the porous walls of the candle filters. The pores of the filter elements are precisely sized to allow the liquid to pass while trapping the solid particles on the outer or inner surface, depending on the filter design. This mechanism ensures a clear separation of the components in the mixture.
In a pressure-driven system, a pump or pressurized gas is used to force the liquid through the filter candles. The pressure creates a force that pushes the liquid against and through the filter medium, leaving behind the solids. Conversely, in a vacuum-driven system, a vacuum pump reduces the pressure inside the filter housing, causing the liquid to be drawn through the filter elements, again separating the solids from the liquid. Both methods achieve the same result but are chosen based on the specific requirements of the process, such as the nature of the liquid, the desired flow rate, and the concentration of solids.
The design of the candle filter elements is crucial to their effectiveness. These elements often feature a large surface area, which maximizes the filtration capacity and minimizes the risk of clogging. The porous structure is engineered to provide consistent and efficient filtration, ensuring that the solid particles are effectively captured. Additionally, the modular design of candle filters allows for easy maintenance and replacement of individual elements, reducing downtime and operational costs. This makes candle filters a practical and reliable solution for continuous filtration processes.
In summary, the working principle of a candle filter is based on the application of pressure or vacuum to drive liquid through candle-shaped filter elements, effectively separating solids from liquids. This method is highly versatile and can be adapted to various industrial applications, offering efficient and reliable filtration. The choice between pressure and vacuum operation depends on the specific process needs, but both methods leverage the same fundamental principle to achieve high-quality filtration results. Understanding this principle is key to appreciating the role and benefits of candle filters in industrial processes.
Candle Safety: Never Leave Candles Unattended
You may want to see also
Explore related products
Applications: Used in industries like chemicals, pharmaceuticals, food, and wastewater treatment for liquid-solid separation
A candle filter, also known as a tubular filter, is a highly efficient filtration device designed for liquid-solid separation. Its unique structure consists of a vertical, cylindrical element resembling a candle, hence the name. This design allows for a large filtration area in a compact space, making it ideal for various industrial applications. The primary function of a candle filter is to remove solid particles from liquids, ensuring the clarity and purity of the filtrate. This process is crucial in industries where product quality and safety are paramount.
Chemical Industry: In the chemical sector, candle filters play a vital role in separating solids from liquids during various production stages. For instance, in the manufacturing of fine chemicals, these filters are used to remove catalysts, impurities, or by-products from reaction mixtures. The ability to handle corrosive and high-temperature fluids makes candle filters suitable for harsh chemical environments. They are employed in the production of pharmaceuticals, polymers, and specialty chemicals, ensuring the final product meets the required specifications and purity standards.
Pharmaceutical Applications: The pharmaceutical industry demands stringent filtration processes to meet regulatory requirements and ensure product safety. Candle filters are utilized in this industry for clarifying and sterilizing liquids, such as active pharmaceutical ingredient (API) solutions and drug formulations. Their efficiency in removing fine particles and microorganisms is essential for producing high-quality medications. Additionally, these filters can handle sterile filtration processes, making them valuable in aseptic manufacturing, where contamination control is critical.
Food and Beverage Processing: In the food industry, candle filters are employed for clarifying juices, wines, beers, and other beverages, ensuring they are free from sediment and impurities. This filtration process enhances the product's appearance, taste, and shelf life. For example, in wine production, candle filters remove tartrates and other particles, resulting in a clear, stable product. Similarly, in fruit juice processing, these filters eliminate pulp and cloudiness, providing a visually appealing and consistent product. The food-grade materials used in candle filters ensure compliance with industry regulations.
Wastewater Treatment: One of the most critical applications of candle filters is in wastewater treatment plants. Here, they are used for tertiary treatment, where the goal is to produce high-quality effluent suitable for reuse or safe discharge into the environment. Candle filters effectively remove suspended solids, organic matter, and microorganisms from the wastewater. This advanced filtration step ensures that the treated water meets stringent quality standards, making it suitable for irrigation, industrial processes, or even potable water production with additional treatment. The durability and efficiency of candle filters make them a reliable choice for handling large volumes of wastewater.
In all these industries, candle filters offer advantages such as high filtration efficiency, compact design, and the ability to handle various process conditions. Their application ensures product quality, compliance with regulations, and environmental sustainability, making them an indispensable tool for liquid-solid separation processes. With customizable designs and materials, candle filters can be tailored to meet the specific requirements of each industry, further emphasizing their versatility and importance.
Cooling Candles: Fridge or Freezer?
You may want to see also
Explore related products
$21.73 $28.98
Types: Includes ceramic, metallic, and polymer candle filters, each suited for specific filtration needs
Candle filters are versatile filtration devices designed to remove impurities from liquids or gases, and they come in various types to cater to specific industrial and commercial needs. Among the most common types are ceramic, metallic, and polymer candle filters, each offering unique advantages depending on the application. These filters are named for their cylindrical, candle-like shape, which maximizes surface area for efficient filtration. Understanding the differences between these types is crucial for selecting the right filter for a given task.
Ceramic candle filters are highly regarded for their durability and thermal resistance, making them ideal for high-temperature applications. Constructed from materials like alumina or silicon carbide, these filters excel in industries such as metal casting and molten metal filtration. Their porous structure allows for effective removal of solid particles while maintaining structural integrity under extreme conditions. Ceramic filters are also resistant to chemical corrosion, ensuring longevity in harsh environments. However, their higher cost compared to other types limits their use to specialized applications where their unique properties are essential.
Metallic candle filters, typically made from materials like stainless steel or sintered metal, are known for their strength and robustness. These filters are particularly suited for applications involving high pressure and abrasive particles, such as in the oil and gas or chemical processing industries. The metal construction provides excellent mechanical stability, allowing them to handle heavy loads without deformation. Additionally, metallic filters can be cleaned and reused multiple times, reducing operational costs. However, they may not be suitable for applications requiring fine filtration due to larger pore sizes compared to ceramic or polymer filters.
Polymer candle filters are lightweight, cost-effective, and versatile, making them a popular choice for a wide range of filtration needs. Constructed from materials like polypropylene or polyester, these filters are ideal for applications where chemical compatibility and disposable use are priorities, such as in pharmaceuticals or food and beverage industries. Polymer filters are also resistant to many acids and bases, ensuring they remain effective in corrosive environments. While they may not withstand high temperatures or pressures as well as ceramic or metallic filters, their affordability and ease of replacement make them a practical option for many processes.
Each type of candle filter—ceramic, metallic, and polymer—is tailored to meet specific filtration requirements, balancing factors like temperature resistance, chemical compatibility, mechanical strength, and cost. Ceramic filters shine in high-temperature and corrosive environments, metallic filters excel in high-pressure and abrasive conditions, and polymer filters offer a cost-effective solution for less demanding applications. By understanding these distinctions, industries can select the most appropriate candle filter to optimize their filtration processes and ensure efficient, reliable performance.
Enchanting Floating Candles: Harry Potter's Magical Touch
You may want to see also
Explore related products
Advantages: Offers high throughput, long service life, easy cleaning, and minimal maintenance requirements
A candle filter, also known as a tubular filter, is a type of filtration system widely used in various industries for its efficiency and reliability. One of its primary advantages is the high throughput it offers. The design of candle filters allows for a large filtration area within a compact space, enabling the processing of significant volumes of liquid or gas in a short time. This high throughput capability makes them ideal for applications requiring rapid filtration, such as in the chemical, pharmaceutical, and food industries. The efficiency of candle filters ensures that production processes are not bottlenecked by the filtration stage, thereby enhancing overall productivity.
Another significant advantage of candle filters is their long service life. Constructed from durable materials such as stainless steel, ceramics, or polymers, these filters are resistant to corrosion, abrasion, and high temperatures. This robustness ensures that they can withstand harsh operating conditions without frequent replacements. The longevity of candle filters not only reduces downtime but also lowers the total cost of ownership, making them a cost-effective solution for long-term filtration needs.
Easy cleaning is a standout feature of candle filters, which further contributes to their operational efficiency. Many candle filters are designed with a backwashing or backflushing mechanism that allows for in-situ cleaning. This process involves reversing the flow of the fluid to dislodge and remove accumulated particles from the filter surface, restoring its efficiency without the need for disassembly. Additionally, the smooth, non-stick surfaces of the filter elements minimize the adhesion of contaminants, simplifying the cleaning process and reducing the time and effort required for maintenance.
Lastly, candle filters are prized for their minimal maintenance requirements. The combination of durable materials, efficient cleaning mechanisms, and a design that minimizes clogging means that these filters require less frequent intervention compared to other filtration systems. Routine maintenance typically involves periodic inspections and occasional replacement of worn components, which can be scheduled during planned downtime. This low-maintenance nature ensures consistent performance and reduces the need for specialized personnel, further lowering operational costs and enhancing reliability.
In summary, the advantages of candle filters—high throughput, long service life, easy cleaning, and minimal maintenance requirements—make them a preferred choice for industries seeking efficient and reliable filtration solutions. Their design and construction address common challenges in filtration processes, ensuring smooth operations and cost-effectiveness over the long term. Whether used in large-scale industrial applications or smaller, specialized processes, candle filters deliver consistent performance with minimal hassle.
Anointing Candles with Olive Oil: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A candle filter is a type of depth filter used in various industries for liquid-solid separation. It consists of a cylindrical element, often made of porous materials like ceramic, metal, or polymer, which resembles a candle in shape, hence the name.
The candle filter operates by passing the liquid-solid mixture through the porous candle element. The solid particles are trapped within the filter's pores, while the clear liquid passes through, effectively separating the two phases.
Candle filters are widely used in industries such as pharmaceuticals, chemicals, food and beverage, and wastewater treatment. They are employed for processes like clarification, polishing, and recovery of high-value products from suspensions.
Candle filters offer several benefits, including high filtration efficiency, large surface area, and easy cleaning and maintenance. They can handle a wide range of flow rates and are suitable for both batch and continuous operations.
Candle filters can be made from various materials, including:
- Ceramic (e.g., alumina, silicon carbide)
- Metal (e.g., stainless steel, nickel)
- Polymer (e.g., polypropylene, polyethylene)
The choice of material depends on the specific application, chemical compatibility, and operating conditions.
