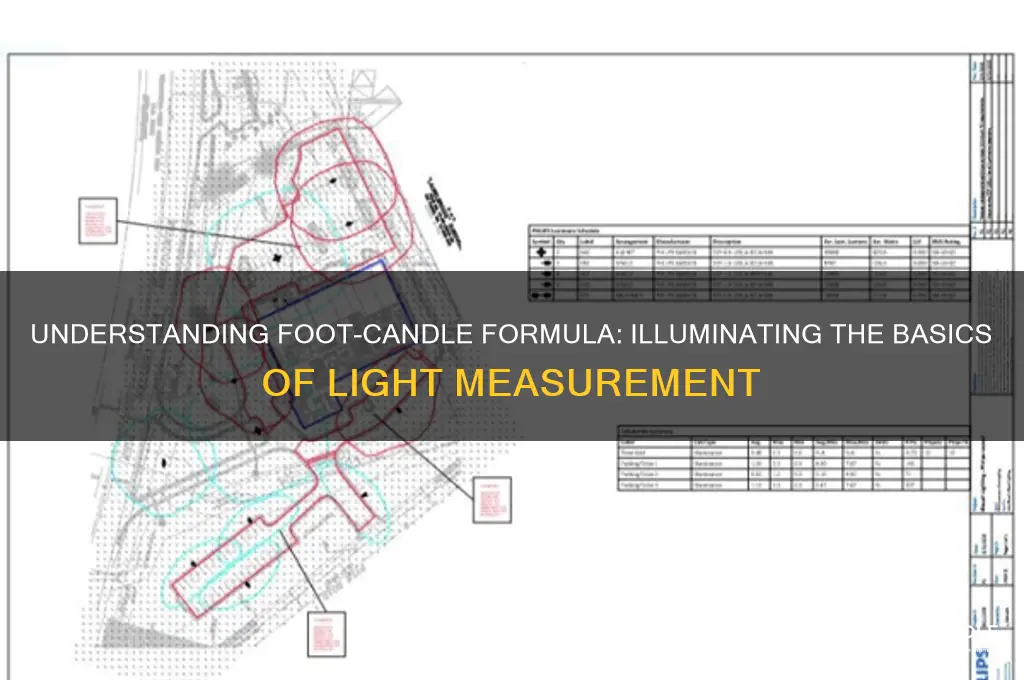

Understanding Foot-Candle Formula: Illuminating The Basics Of Light Measurement

The foot-candle formula is a fundamental concept in lighting design and measurement, used to quantify the amount of light that falls on a surface. It is defined as the illuminance produced by one lumen of light distributed evenly over a one-square-foot area, essentially measuring how bright a surface appears under a given light source. The formula itself is straightforward: Foot-Candles (fc) = Lumens (lm) / Area (sq ft). Understanding this formula is crucial for professionals in fields such as architecture, photography, and safety compliance, as it ensures adequate lighting levels for specific tasks or environments while optimizing energy efficiency.

Understanding Foot-Candle Definition

A foot-candle (fc) is a unit of measurement used to quantify the amount of light that falls on a surface, specifically one square foot of that surface. It is a fundamental concept in lighting design and photometry, providing a clear understanding of illumination levels. The foot-candle definition is crucial for various applications, from architectural lighting to outdoor area lighting, ensuring that spaces are adequately lit for their intended purposes. This measurement is particularly important in industries where precise lighting conditions are required, such as photography, horticulture, and safety compliance.

The foot-candle formula is derived from the basic principles of light measurement. One foot-candle is defined as the amount of illumination produced by a standard candle (one candela) at a distance of one foot. Mathematically, it can be expressed as the luminous flux (in lumens) per unit area (in square feet). The formula is: Foot-Candles (fc) = Lumens (lm) / Area (sq ft). This equation highlights the relationship between the total light output (lumens) and the area over which it is distributed. Understanding this formula is essential for calculating the required lighting levels in different environments.

To further clarify, consider a practical example. If a light source emits 1,000 lumens and illuminates a surface area of 100 square feet, the illumination level in foot-candles would be 1,000 lm / 100 sq ft = 10 fc. This calculation demonstrates how the foot-candle measurement helps in determining whether the lighting is sufficient for a given task or space. For instance, office spaces typically require around 30-50 fc, while outdoor pathways may need only 1-5 fc.

It’s important to note that foot-candles measure only the amount of light reaching a surface, not the quality or color of the light. For a more comprehensive understanding of lighting conditions, foot-candles are often used alongside other metrics, such as lux (the metric equivalent of foot-candles) and lumens. While lux measures light per square meter, foot-candles are specifically tailored to square feet, making them more relevant in regions that use the imperial system.

In summary, understanding the foot-candle definition and its formula is vital for anyone involved in lighting design or assessment. It provides a standardized way to measure and compare illumination levels, ensuring that spaces are neither over-lit nor under-lit. By mastering this concept, professionals can make informed decisions about lighting requirements, energy efficiency, and compliance with safety standards. Whether for residential, commercial, or industrial applications, the foot-candle remains a cornerstone of effective lighting planning.

Formula for Foot-Candle Calculation

The formula for foot-candle calculation is a fundamental concept in lighting design and photometry, used to measure the amount of light (luminous flux) falling on a surface. A foot-candle (fc) is defined as the illuminance produced by one lumen of light distributed evenly over a one-square-foot area. Mathematically, the formula to calculate foot-candles is: Foot-Candles (fc) = Lumens (lm) / Area (sq ft). This equation illustrates that the illuminance in foot-candles is directly proportional to the total lumens emitted by a light source and inversely proportional to the area over which the light is distributed. For example, if a light source emits 1,000 lumens and illuminates a 10-square-foot area, the resulting illuminance would be 100 foot-candles (1,000 lm / 10 sq ft = 100 fc).

In practical applications, the formula often incorporates additional factors such as the distance from the light source and the angle of light distribution. For point light sources, the illuminance decreases with the square of the distance from the source, following the inverse square law. This can be integrated into the foot-candle calculation as: Foot-Candles (fc) = Lumens (lm) / (Area (sq ft) × (Distance (ft) / Distance (ft))²). However, for simplicity, many calculations assume the light is evenly distributed over the area of interest. When dealing with multiple light sources, the total foot-candles are the sum of the illuminance contributed by each source.

Another important consideration in foot-candle calculations is the coefficient of utilization (CU), which accounts for light lost due to absorption, reflection, or misdirection. The adjusted formula becomes: Foot-Candles (fc) = (Lumens (lm) × CU) / Area (sq ft). This factor ensures that the calculation reflects real-world conditions where not all emitted light reaches the target surface. For instance, if a light fixture emits 2,000 lumens and has a CU of 0.6, the effective lumens would be 1,200 (2,000 lm × 0.6), which is then used in the calculation.

For more complex scenarios, such as calculating foot-candles for rectangular spaces or considering the beam angle of a light source, the formula may require adjustments. In such cases, the area is calculated based on the dimensions of the space, and the lumens are distributed accordingly. For example, if a light source illuminates a 10 ft × 10 ft area, the area is 100 sq ft, and the formula remains Foot-Candles (fc) = Lumens (lm) / 100 sq ft. Understanding these variations is crucial for accurate lighting design in different environments.

In summary, the formula for foot-candle calculation is a versatile tool that can be adapted to various lighting scenarios. Whether for simple or complex setups, the core principle remains the same: Foot-Candles = Lumens / Area. By incorporating factors like distance, utilization, and multiple light sources, designers can ensure precise illuminance levels tailored to specific needs. Mastery of this formula is essential for professionals in fields such as architecture, photography, and safety compliance, where proper lighting is critical.

Units and Conversion Factors

The foot-candle (fc) is a unit of measurement for illuminance, which quantifies the amount of light falling on a surface. It is defined as the illuminance produced by one lumen of luminous flux distributed evenly over a surface area of one square foot. Understanding the units and conversion factors associated with foot-candles is essential for accurately measuring and comparing light levels in various applications, such as lighting design, photography, and safety standards.

The primary unit of illuminance in the International System of Units (SI) is the lux (lx). One lux is equal to one lumen per square meter. To convert foot-candles to lux, the formula is: 1 foot-candle = 10.764 lux. This conversion factor arises because one square foot is approximately 0.0929 square meters, and multiplying the luminous flux per square foot by this area conversion yields the equivalent in lux. Conversely, to convert lux to foot-candles, divide the lux value by 10.764.

In addition to lux, foot-candles can also be related to other units of luminous intensity and flux. For example, luminous intensity is measured in candelas (cd), and luminous flux is measured in lumens (lm). While these units are not directly interchangeable with foot-candles, they are interconnected through the geometry of light distribution. For instance, the illuminance in foot-candles at a specific distance from a light source can be calculated using the formula: E(fc) = I(cd) / d², where I is the luminous intensity in candelas and d is the distance in feet.

Another important conversion factor involves the relationship between foot-candles and lumens. Since one foot-candle represents one lumen per square foot, the total lumens required to achieve a specific illuminance level can be calculated by multiplying the desired foot-candles by the area in square feet. For example, to achieve 50 foot-candles over a 100-square-foot area, 50 fc × 100 ft² = 5,000 lumens would be needed. This relationship is crucial for selecting appropriate lighting fixtures based on space requirements.

Lastly, it is worth noting that foot-candles are often used in the United States, while lux is the standard unit in most other countries. When working with international standards or collaborating across regions, accurate conversion between these units is critical. For precise calculations, using the exact conversion factor of 1 fc = 10.76391 lux is recommended, though 10.764 is commonly used for simplicity. Understanding these units and conversion factors ensures consistency and accuracy in lighting measurements and applications.

Practical Applications in Lighting

The foot-candle (fc) is a unit of measurement for light intensity, representing the amount of light reaching a surface. The foot-candle formula, which is foot-candles = lumens / (area in square feet), is essential for determining the appropriate lighting levels in various environments. In practical applications, understanding and applying this formula ensures that spaces are adequately lit for their intended purposes, balancing functionality, energy efficiency, and user comfort.

One of the primary practical applications of the foot-candle formula is in commercial and office lighting design. Different tasks require specific light levels to ensure productivity and reduce eye strain. For instance, general office spaces typically require 20–50 foot-candles, while detailed tasks like drafting or assembly work may need 70–100 foot-candles. By calculating the required foot-candles using the formula, lighting designers can select the appropriate number and type of luminaires to achieve uniform illumination. This approach not only enhances workplace efficiency but also complies with safety and ergonomic standards.

In residential lighting, the foot-candle formula helps homeowners and designers create comfortable and functional living spaces. For example, kitchens, where detailed tasks like chopping and cooking occur, benefit from higher light levels (70–80 foot-candles), while living rooms may only require 10–20 foot-candles for a relaxed ambiance. By applying the formula, designers can ensure that lighting fixtures provide the right amount of light without over-illuminating or under-illuminating spaces, thereby optimizing energy use and creating a welcoming atmosphere.

Another critical application is in outdoor lighting, particularly for safety and security. Parking lots, pathways, and public spaces require specific light levels to minimize accidents and deter criminal activity. For instance, parking lots typically need 0.5–5 foot-candles, depending on usage and local regulations. Using the foot-candle formula, lighting professionals can determine the optimal placement and intensity of fixtures to achieve uniform coverage. This ensures that outdoor areas are well-lit without causing light pollution or unnecessary energy consumption.

Finally, the foot-candle formula plays a vital role in specialized environments such as hospitals, schools, and retail spaces. In healthcare settings, surgical suites require extremely high light levels (100–160 foot-candles) for precision tasks, while patient rooms need softer lighting (30–50 foot-candles) for comfort. In retail, proper lighting enhances product visibility and customer experience, with display areas often requiring 30–50 foot-candles. By applying the formula, designers can tailor lighting solutions to meet the unique demands of these environments, ensuring both functionality and aesthetic appeal.

In summary, the foot-candle formula is a cornerstone of practical lighting applications across various settings. Whether for commercial, residential, outdoor, or specialized environments, this formula enables precise calculation of light intensity, ensuring that spaces are appropriately illuminated for their intended use. By leveraging this tool, lighting professionals can create efficient, safe, and visually pleasing environments that meet the needs of occupants while optimizing energy usage.

Differences Between Foot-Candle and Lux

Foot-candles (fc) and lux (lx) are both units of measurement for illuminance, which quantifies the amount of light falling on a surface. However, they differ in their definitions, origins, and applications. The foot-candle is a non-SI (International System of Units) unit primarily used in the United States, while the lux is the SI unit for illuminance, widely adopted internationally. The foot-candle is defined as the illuminance produced by one lumen of light distributed evenly over a surface area of one square foot. Mathematically, it is expressed as: 1 foot-candle = 1 lumen per square foot. In contrast, the lux is defined as the illuminance produced by one lumen of light distributed evenly over a surface area of one square meter: 1 lux = 1 lumen per square meter. This fundamental difference in area measurement (square feet vs. square meters) is the primary distinction between the two units.

The conversion between foot-candles and lux is straightforward due to their relationship to the units of area. Since 1 square meter is approximately equal to 10.7639 square feet, the conversion factor is: 1 foot-candle ≈ 10.7639 lux. For example, if a surface receives 10 foot-candles of illuminance, it is equivalent to approximately 107.64 lux. This conversion is essential when working with lighting standards or specifications that use different units, ensuring consistency and accuracy in measurements across systems.

Another key difference lies in their usage and regional preference. Foot-candles are predominantly used in the United States for applications such as architectural lighting, photography, and horticulture. For instance, recommended lighting levels for offices or retail spaces are often specified in foot-candles. On the other hand, lux is the standard unit in most other countries and is widely used in international standards, scientific research, and modern lighting technology. This regional disparity means that professionals must be familiar with both units to interpret and apply lighting data globally.

The formulas for calculating illuminance in foot-candles and lux also highlight their differences. The foot-candle formula is derived from the distribution of lumens over a square foot: Foot-candles = Lumens / Area (in square feet). Conversely, the lux formula uses square meters as the area unit: Lux = Lumens / Area (in square meters). These formulas emphasize the importance of understanding the units of area when measuring illuminance, as using the wrong unit can lead to significant errors in calculations.

In practical applications, the choice between foot-candles and lux often depends on the context and the tools available. For example, light meters in the U.S. typically display readings in foot-candles, while those in Europe or Asia use lux. When designing lighting systems, engineers and architects must consider the unit conventions of their region while ensuring compatibility with international standards. Despite their differences, both units serve the same purpose: to quantify how much light is available on a surface, enabling informed decisions in lighting design and safety compliance. Understanding the distinctions between foot-candles and lux is crucial for anyone working with illuminance measurements, ensuring precision and clarity in both local and global contexts.
